We Innotech are proud to introduce ourselves as one of the upcoming leading manufacturers of APFC panels. We are very much inspired in developing energy conservation products which led us to take a step for the development of the APFC panels and R & D in the development of our own APFC Relays through our commitment for service to our customers. After the study of the requirements in the market and to produce an economical product to our customers we came out with two varieties of APFC panels.

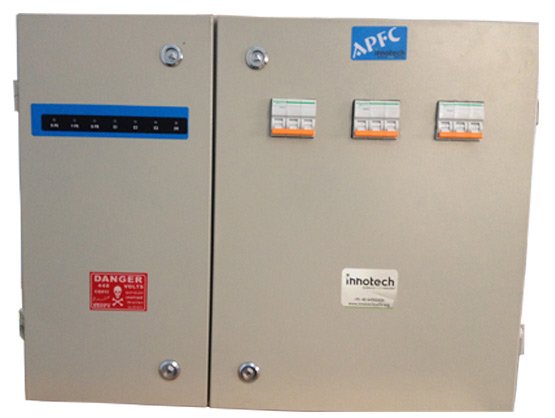

Moderate APFC is used for low range commercial users where there would be a necessity of up to 25 KVAr and this is without display model.
| Panel Description | Named as | Code |
|---|---|---|
| Up to 25 KVAr | micro APFC | S - 50 APFC |
| 50KVAr – 250 KVAr | macro APFC | L – 200 APFC |

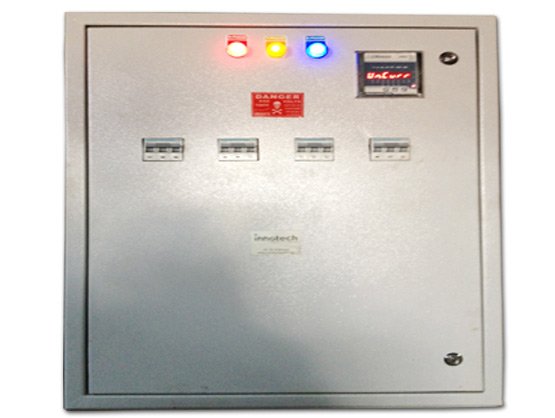

Macro APFC is used for higher range of commercial and industrial loads where there would be a necessity of capacitors more than 25 KVAr to customer load specific requirements. Macro APFC contains display of Power Factor, with which the target Power Factor can be programmable and also the capacitor, Current Transformer details which can be programmable.
| Parameter | Model No |
|---|---|
| Voltage Input | 350 to 460 VAC |
| 50KVAr – 250 KVAr | macro APFC |
| Operating frequency | 50 Hz |
| Operating temperature | |
| Display Used | Customer specific |
| Switching stages | 1 to 12 |
| Switching Delay | setting 1 to 60 sec or N/A |
| Ampere Sensivity | 2 to 400 Amps |
| Control Type | Intelligent Controlling |
| CT Ratio programming | |
| Auto / Manual setting availability | Yes |
| Display parameters | Custom specific |
| Capacitor On /off Display | Yes |
| Switching type | Relay / SCR |
| Dimensions of Panel | 450 x 400 x 150 |
| Target power factor achieved | 0.98 |
